When you look at a completed home, all you see are the outer shingles or metal panels keeping out the Florida rain. But underneath that surface lies a carefully engineered framework designed to carry thousands of pounds of weight and withstand heavy coastal winds.
By looking at individual framing parts like rafters, collar beams, and decking, we can understand how a roofing structure is supported. However, understanding what those parts are is only half the picture. To appreciate how a roof stands strong for decades, it helps to understand how contractors systematically assemble those components piece by piece.

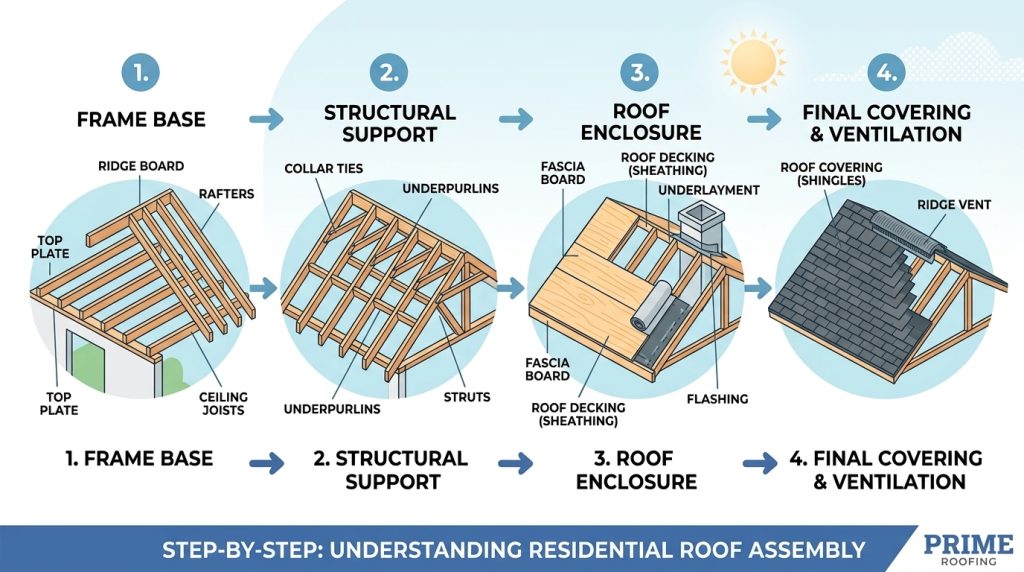

Here is a step-by-step look at how a residential roof frame comes together from the ground up.
Phase 1: Planning and Setting the Foundation Base
Before any lumber is cut or lifted, the framing team relies on accurate structural design. Having clear roof plans and architectural blueprints allows contractors to calculate exact slopes, pitch angles, and load pathways down to the foundation.
Once the house wall framing is secure, construction begins at the top of the wall studs:
Securing the Top Plate: Double top plates made of treated lumber are anchored across the tops of the exterior wall studs. This creates a flat, level surface that transfers the total roof load down through the walls.
Laying Ceiling Joists: Parallel ceiling joists are laid horizontally across the top plates. These joists serve a dual purpose: they support the interior attic floor/ceiling drywall and act as a tension tie that prevents opposing exterior walls from spreading outward under heavy roof loads.
Phase 2: Erecting the Primary Roof Frame
With the flat base secured, the vertical skeleton of the roof begins to take shape.
Raising the Ridge Board: The ridge board is positioned at the absolute peak of the roof. Held temporarily in place with vertical bracing, it serves as the central connecting spine where opposing sides of the roof meet.
Pitching the Rafters: Diagonal wood rafters are cut at precise angles and fastened to the top plate at the bottom and the ridge board at the top. As rafters are installed in pairs along the length of the building, they form the sloping profile of the roof structure.
Phase 3: Structural Reinforcement & Load Distribution
For wide spans, steep pitches, or heavy roof coverings, rafters alone aren’t enough to prevent sagging or wind lift. Builders integrate secondary framing members to lock the frame in place:
Collar Beams (Collar Ties): Installed horizontally across opposing rafters near the upper third of the ridge, collar beams reinforce the rafters against extreme wind uplift pressures.
Underpurlins and Struts: On longer rafter spans, horizontal underpurlins run beneath the rafters midway down the slope. Angled struts then extend down from the underpurlins to resting strutting beams or internal load-bearing walls, dispersing the mid-span weight safely throughout the structure.
Phase 4: Enclosing the Frame with Sheathing and Prep Layers
Once the main skeleton is rigid and square, the crew transitions from rough framing to weatherproofing prep. Equipping the installation team with essential roofing installation materials ensures the deck is properly prepared for the final covering.
Fascia Boards: Clean fascia boards are nailed across the exposed bottom tips of the rafter tails. This creates a solid mounting edge for roof gutters and supports the bottom edge of the roof deck.
Decking / Sheathing: Plywood or OSB (Oriented Strand Board) panels are laid flat across the exterior face of the rafters in a staggered pattern. This completely seals the open frame and creates a solid, flat surface to support the outer roofing layers.
Flashing and Synthetic Underlayment: Corrosion-resistant metal flashing is installed around vulnerable joints—such as valleys, chimneys, and wall intersections—to deflect water. High-grade underlayment is then rolled over the decking to establish a secondary waterproof barrier.
Phase 5: Ventilation and Outer Roof Covering
The final stage turns the structural frame into a fully functional shelter.
Continuous soffit vents are set at the lower overhangs, paired with ridge vents along the top peak. This creates an uninterrupted airflow path through the attic, preventing moisture buildup and keeping attic temperatures under control during hot Florida summers.
Finally, the visible roof covering—whether lightweight dimensional asphalt shingles, architectural metal panels, or concrete tiles—is fastened over the underlayment and flashing according to local building codes.
